Architecture Overview

Technical overview of r0astr's system design.

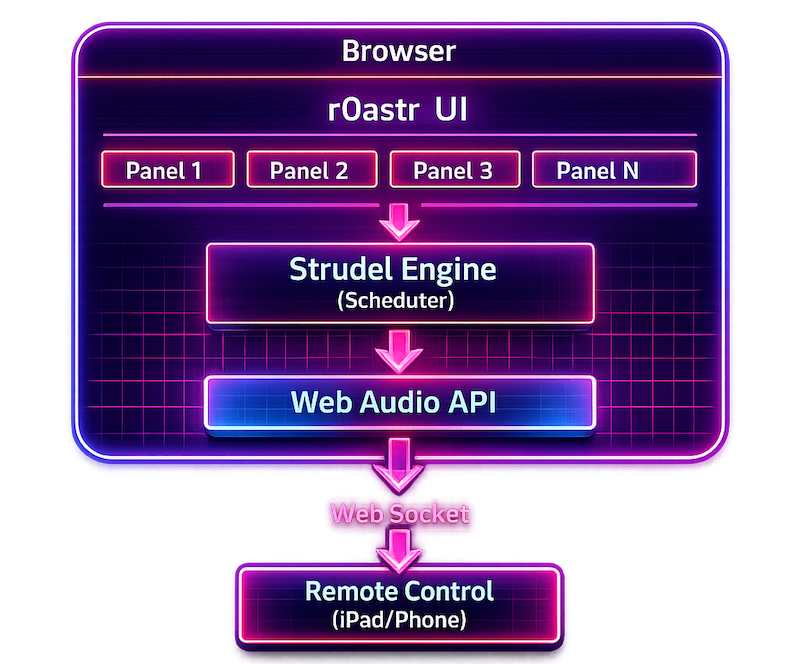

System Diagram

┌─────────────────────────────────────────────────────────┐
│                      Browser                             │
│  ┌─────────────────────────────────────────────────┐    │
│  │                  r0astr UI                       │    │
│  │  ┌─────────┐ ┌─────────┐ ┌─────────┐ ┌───────┐ │    │
│  │  │ Panel 1 │ │ Panel 2 │ │ Panel 3 │ │Panel 4│ │    │
│  │  └────┬────┘ └────┬────┘ └────┬────┘ └───┬───┘ │    │
│  │       │           │           │          │      │    │
│  │       └───────────┼───────────┼──────────┘      │    │
│  │                   ▼                              │    │
│  │          ┌────────────────┐                     │    │
│  │          │ Strudel Engine │                     │    │
│  │          │  (Scheduler)   │                     │    │
│  │          └───────┬────────┘                     │    │
│  │                  │                              │    │
│  │                  ▼                              │    │
│  │          ┌────────────────┐                     │    │
│  │          │  Web Audio API │                     │    │
│  │          └────────────────┘                     │    │
│  └─────────────────────────────────────────────────┘    │
│                         │                                │
│                         │ WebSocket                      │
│                         ▼                                │
│              ┌─────────────────────┐                    │
│              │   Remote Control    │                    │
│              │   (iPad/Phone)      │                    │
│              └─────────────────────┘                    │
└─────────────────────────────────────────────────────────┘

Core Components

UI Layer (src/main.js)

• Panel management (create, update, delete)
• Pattern editor with CodeMirror
• Slider controls (auto-generated from patterns)
• Master panel for global controls

Strudel Integration

const { evaluate, scheduler } = repl({
  defaultOutput: webaudioOutput,
  getTime: () => ctx.currentTime,
  transpiler,
});

Key integration points:

• repl() - Creates the pattern evaluation environment
• evaluate() - Compiles and runs pattern code
• scheduler - Manages pattern timing and synchronization
• transpiler - Converts pattern code to executable JavaScript

Audio Engine

• Single shared AudioContext (browser requirement)
• All patterns share the same audio clock
• Web Audio nodes for synthesis and effects

WebSocket Server

• Runs on the Vite dev server
• Handles remote control connections
• Broadcasts state changes to all clients

Key Files

File	Purpose
index.html	Main HTML structure
src/main.js	Application logic
src/panels.js	Panel management
src/websocket.js	Real-time communication
vite.config.mjs	Build configuration

Data Flow

1. User edits pattern in panel
2. Pattern sent to Strudel transpiler
3. Transpiler generates executable code
4. Scheduler evaluates pattern each cycle
5. Audio output sent to Web Audio API
6. State changes broadcast via WebSocket

Strudel Packages Used

Package	Purpose
@strudel/core	Pattern engine
@strudel/mini	Mini notation parser
@strudel/transpiler	Code transpiler
@strudel/webaudio	Audio output
@strudel/tonal	Music theory
@strudel/soundfonts	SoundFont support

Build Pipeline

Source Files
     │
     ▼
Vite Development Server ──► Hot Module Replacement
     │
     ▼
Vite Build
     │
     ├──► dist/          (Electron app)
     │
     └──► dist-lite/     (Web-only, no server)
              │
              ▼
         GitHub Pages

---

See Contributing for development setup.
